A Gauge R&R Excel template is a structured spreadsheet for checking whether a measurement system produces dependable results. Gauge R&R, also written as Gage R&R, stands for repeatability and reproducibility. Repeatability measures variation when the same operator measures the same part more than once. Reproducibility measures variation between different operators.
This type of template is useful for quality engineers, inspectors, manufacturing supervisors, metrology technicians, Six Sigma practitioners, and suppliers preparing quality documentation. It can support process validation, PPAP work, corrective actions, audit preparation, and routine checks of calipers, micrometers, height gauges, bore gauges, and other variable-measurement equipment.
What the Excel template usually includes

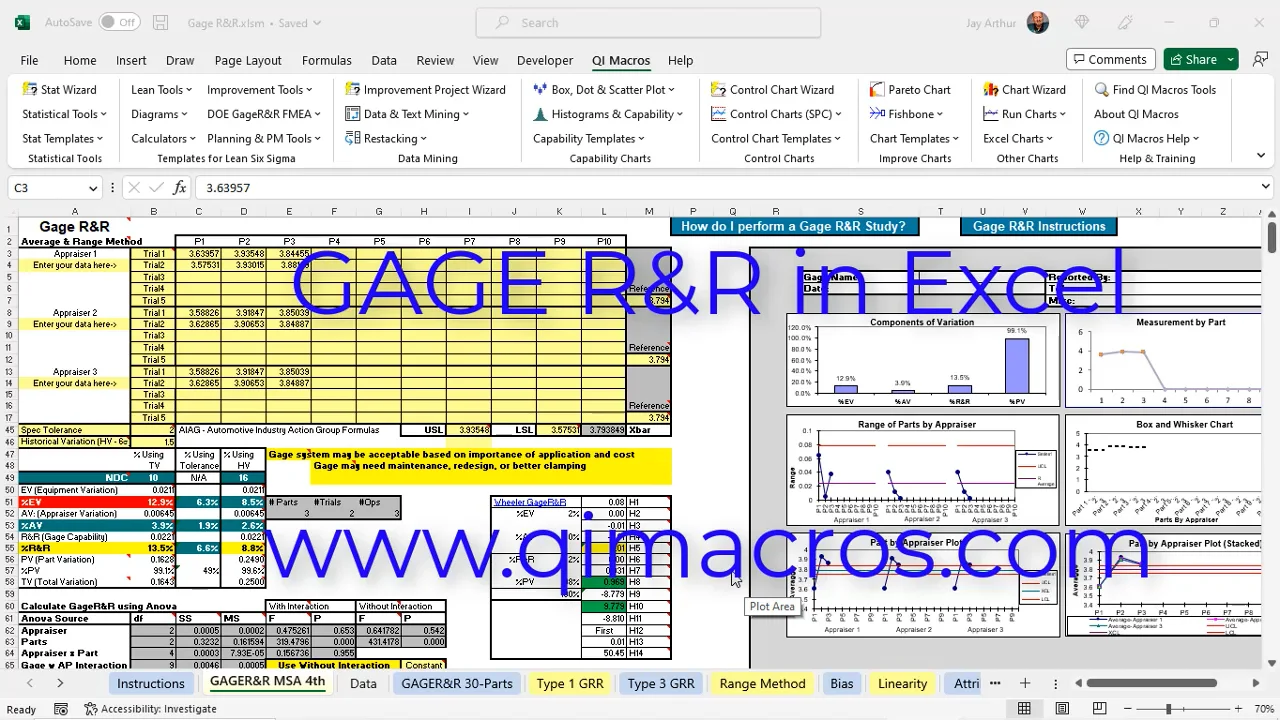

Most practical templates provide a data-entry sheet, calculation area, results summary, and sometimes charts. A common study uses 10 parts, 3 operators, and 3 trials per operator. The spreadsheet may calculate equipment variation, appraiser variation, part-to-part variation, total variation, percentage R&R, and the number of distinct categories.
Some workbooks use the average-and-range method, while others use ANOVA. Check the instructions tab before entering data because the required layout and interpretation can differ. A well-designed workbook may also include a worked example, automatic ranges, formulas, and an acceptability summary.
How to use a Gauge R&R Excel template
- Choose representative parts. Select parts that cover the normal range of process variation rather than using only nearly identical pieces.
- Identify the operators and gauge. Record the instrument, resolution, calibration status, characteristic being measured, and specification limits when required.
- Randomize the measurement order. Avoid letting operators know the previous result, and have each operator measure every part according to the study design.
- Enter readings carefully. Use consistent units and the same decimal precision throughout the worksheet. Do not overwrite formula cells.
- Review the results. Compare the reported percentage R&R with your organization’s requirements. A commonly used guideline treats results below 10% as acceptable, 10% to 30% as situation-dependent, and above 30% as needing improvement.
Printing and recordkeeping tips
- Set the worksheet to landscape orientation for wide data tables.
- Use print area settings so blank columns and unused calculation cells are excluded.
- Fit the report to one page wide, but avoid shrinking text so far that readings are difficult to verify.
- Repeat the header row on each printed page and include the study date, gauge identification, operator names, and part numbers.
- Print the results summary separately when submitting the study for approval, and save the completed workbook as the controlled electronic record.
Before relying on the conclusion, confirm that the study design matches your quality procedure and that the gauge is calibrated, suitable for the tolerance, and used consistently. The spreadsheet organizes the analysis, but sound part selection and disciplined measurement technique determine whether the result is useful.
